Blind Rivet Dome Head - Alum body / Steel mandrel - White RAL 9010
Product Code: ADS32120RAL9010
Min Grip Range (mm): 7
Max Grip Range (mm): 9
Shear N: 760
Tensile N: 980
Body Mat: Aluminium
Mandrel Mat: Steel - Zinc Cr3
Colour: RAL 9010 - PURE WHITE

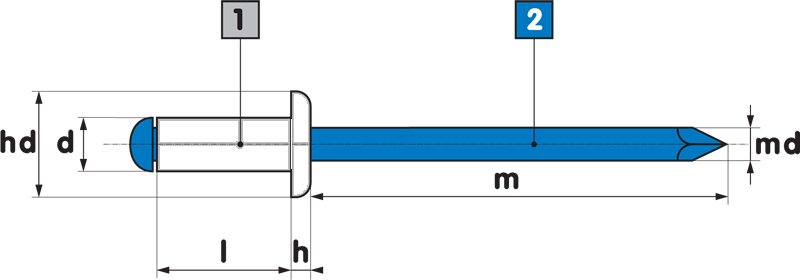

hd: 6.5 + 0.0 / - 0.7 mm
d: 3.2 + 0.08 / - 0.15 mm
l: 12mm
h: 0.8 =/- 0.2 mm
m: 27 mm
md: 1.75 mm
