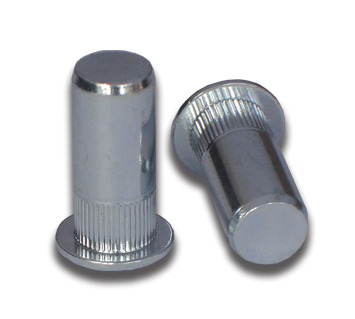

Closed End - Large Flange - Knurled Body
Product Code: M6SFZMC/S
Head Type: Large Flange
Min Grip Range (mm): 0.7
Max Grip Range (mm): 3
Body Mat: Steel - Zinc Plate Cr3
Body Diameter: 9.0 + 0.0/- 0.15 mm
Length: 21.50 +/- 1.0 mm
Head Diameter: 13.0 + / - 0.30 mm
Head: 1.50 +/- 0.20 mm
Hole: 9.0 mm
Shear Strength Nm: 3000
Tensile Strength Nm: 16500
l: 21.5mm
