TriRivet Dome Head - Alum body/Alum Mandrel
Product Code: TRI48245
Head Type: Dome Head
Min Grip Range (mm): 5
Max Grip Range (mm): 12
Shear N: 800
Tensile N: 1100
Body Mat: Aluminium 5056
Mandrel Mat: Aluminium 5056
Hole: 5.0 - 5.2 mm

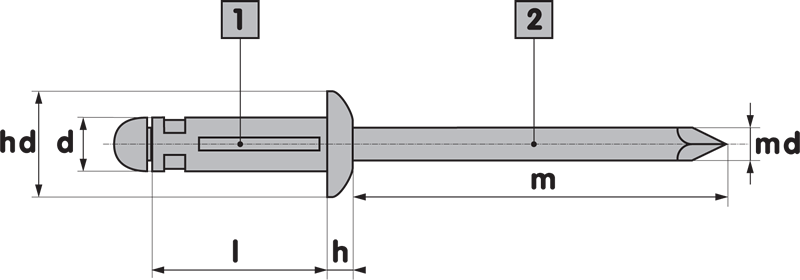

hd: 9.6 +/ 0.29mm
d: 4.8 +/ 0.1mm
l: 24.5mm
h: 2.0mm
m: 27mm
md: 2.9mm
